Introspection: using extensions

SAMSON has an open architecture which allows you to extend it, and adapt it to your needs, by downloading SAMSON Extensions (modules) from the SAMSON Connect website.

See also

User Guide: Extending SAMSON

SAMSON extensions might expose their functionality through the Introspection mechanism thanks to the SAMSON Developer Guide. And you can access the exposed functionality both on C++ and Python sides via proxies (SBProxy).

Tip

If you develop a SAMSON extension in C++ and want to use its functionality in Python scripts, then expose it via the Introspection mechanism on the C++ side.

See also

SAMSON SDK: Introspection

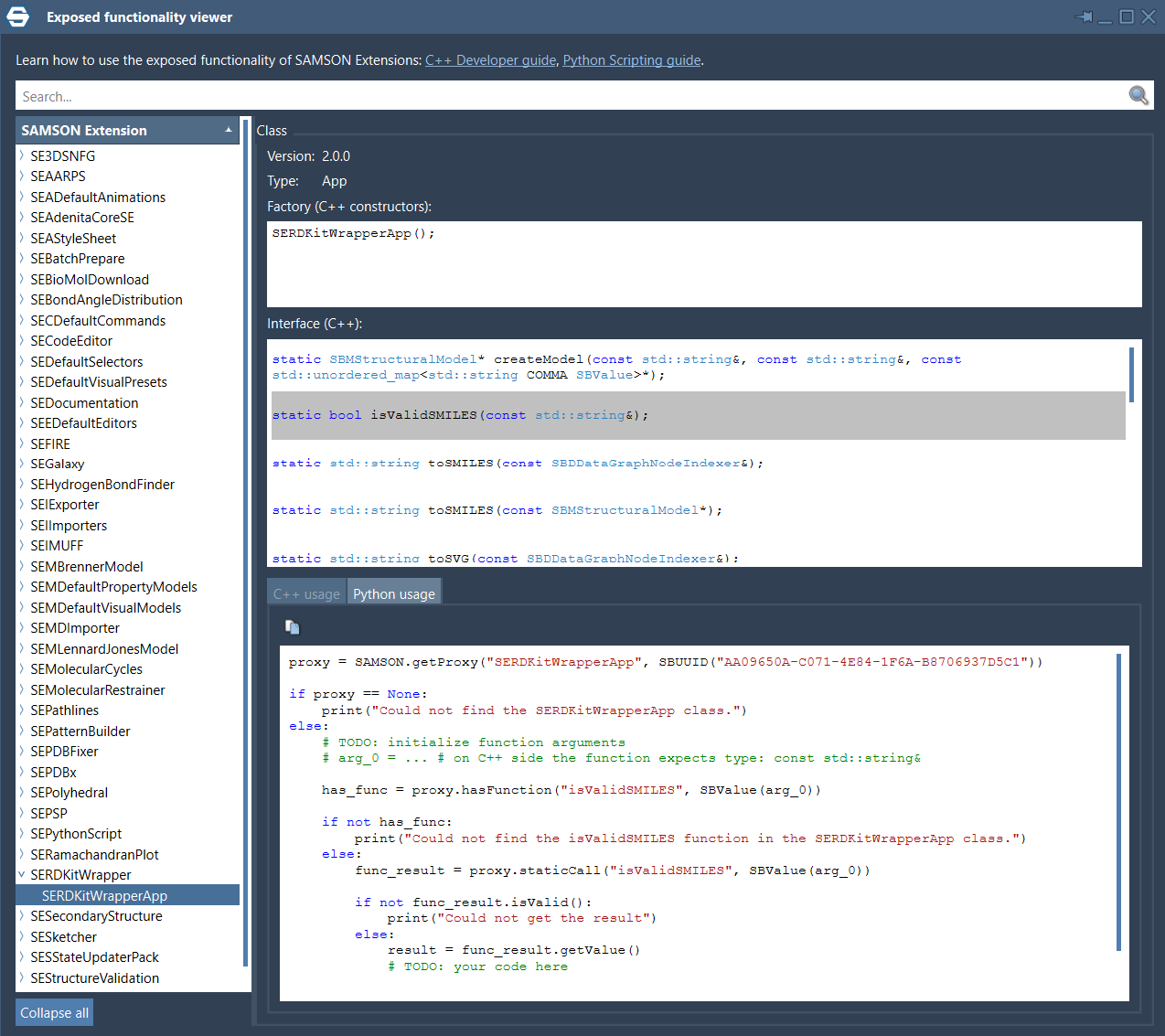

You can use the Exposed Functionality Viewer directly available in SAMSON (Home > Apps > Developer > Exposed functionality viewer) to see classes and functions exposed per extension. You can simply choose the extension, class, and function you are interested in and copy the generated sample code from the Python usage tab - you will only need to provide function arguments, if required.

Getting proxies

The calling of exposed functionality is done through the exposed class proxy (SBProxy). To get the class proxy, you need to know at least the class name. In case there is a risk that several SAMSON Extensions might provide a class with the same name, then it is possible to specify the UUID of the extension that contains this class.

Get a class proxy

proxy = SAMSON.getProxy(
    className = "SERDKitWrapperApp",
    extensionUUID = SBUUID("AA09650A-C071-4E84-1F6A-B8706937D5C1"))

Calling functions

Proxies can expose various types of functions:

Function type	How to call
static	SBProxy.staticCall()
non-static	SBProxy.call()
non-static const	SBProxy.constCall()

Calling static functions

Call a static function

# get the class proxy
proxy = SAMSON.getProxy(
    className = "SERDKitWrapperApp",
    extensionUUID = SBUUID("AA09650A-C071-4E84-1F6A-B8706937D5C1"))

# check if the proxy has the exposed function `isValidSMARTS` that accepts a string
if proxy.hasFunction("isValidSMARTS", SBValue("")):

    # call the static function for a given SMARTS
    # the call will return a resulting value encapsulated into `SBValue` object
    result = proxy.staticCall(
        # function name
        "isValidSMARTS",
        # function arguments
        SBValue("CCO"))

    # check if the returned `SBValue` is valid
    if result.isValid():
        # get the value from the `SBValue` object
        print("result: ", result.getValue())

Calling non-static functions

To call a non-static function, you need to create the corresponding class instance. The class instance is created from its proxy via SBProxy.createInstance() which returns the newly created instance as SBValue.

Note

The ownership of the class instance object is taken and managed by Python.

The code below shows how to call a non-static function using a created instance of the corresponding class on an example of the Fetcher extension that exposes the functionality to fetch/download PDB files.

Call a non-static function

# get the class proxy
proxy = SAMSON.getProxy(
    className = "PDBDownload",
    extensionUUID = SBUUID("6F5D45C5-E76E-CDC8-52D5-D2821C128BE8"))

## create the class instance from its proxy
instance = proxy.createInstance()

# check if the instance has been successfully created
if instance.isValid():

    # check if the class proxy has the desired function
    if proxy.hasFunction("downloadOnly", SBValue(""), SBValue(""), SBValue("")):

        # call a non-static function for the class instance
        # this function will download and save the PDB file in the default directory
        proxy.call(
            # class instance
            instance,
            # function name
            "downloadOnly",
            # function arguments
            SBValue("1YRF"), SBValue("pdb"), SBValue(""))

        # the default path to the destination file
        downloaded_file_path = SAMSON.getUserDataPath() + "/Downloads/PDB/1YRF.pdb"

        # check if the file has been downloaded
        if os.path.exists(downloaded_file_path):
            print("Downloaded successfully")
        else:
            print("Could not download a file")

In the same way you can call non-static const functions.
